開關電源

5W Series 8.5W Series 12W Series 15W Series 18W Series 28W Series 36W Series 65W Series 90W Series Changable AC plug Series

產品輸入插頭樣式（Input Plug Unit）
歐洲 EUROPE INPUT 230V AC 50Hz	英國 UK INPUT 230~240 50Hz	澳洲AUSTRALIA INPUT 240V AC 50Hz	美國N. AMERICA AC120V AC 60Hz	日本 JAPAN AC100V 50/60Hz

EN 50075	BS 1363	AS/NZS 3112	ANSIN/NEMA WD 6-2002	ANSIN/NEMA WD 6-2002

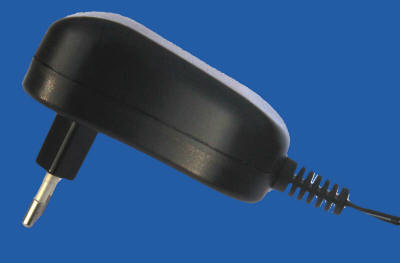

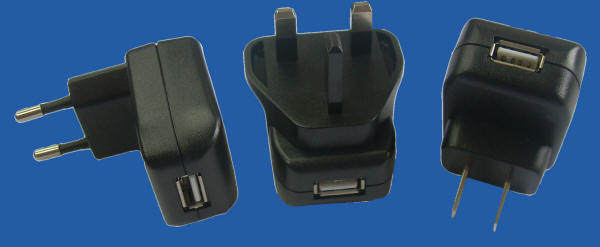

5W Series



1.小體積,流線型,全密封,攜帶方便。 2.內置過壓、過流和短路保護。 3.寬范圍輸入: 100-240V,50/60Hz 4.額定輸出電壓,電流: DC2.4V-24V; 50-1000mA; 5W max. 5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭） 4.工作模式:恒壓或恒流。 5.符合能效:ErP,EMPS,CEC,DOE。 6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA 7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE. 8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	1000mA max.at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 2.4-24V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	1000mA max @2.4-24V,5W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	5W max @ DC 2.4-24V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	USB socket
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

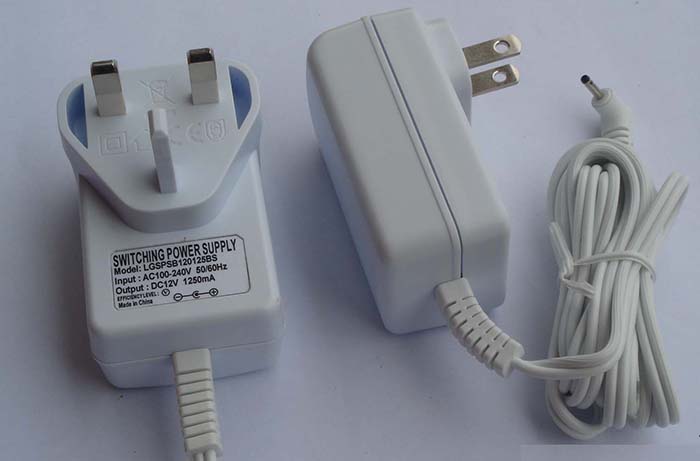

8.5W Series



1.小體積,流線型,全密封,攜帶方便。 2.內置過壓、過流和短路保護。 3.寬范圍輸入: 100-240V,50/60Hz 4.額定輸出電壓,電流: DC2.4V-30V; 50-1500mA;8.5W max. 5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭） 6.工作模式:恒壓或恒流。 7.符合能效:ErP,EMPS,CEC,DOE。 8.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA 9.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE. 10. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	1500mA max.at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 2.4-30V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	1500mA max @2.4-30V,8.5W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	8.5W max @ DC 2.4-30V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃
EN 60335-2-29 Standard requirements: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Dieses Gerät kann von Kindern ab 8 Jahren verwendet werden. Es kann ebenfalls von Personen mit verminderten körperlichen, sensorischen und geistigen Fähigkeiten oder mangelnder Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt werden oder im sicheren Umgang des Gerätes unterwiesen wurden und eine mögliche Gefährdung bei falscher Benutzung des Gerätes verstehen.

12W Series



1.小體積,流線型,全密封,攜帶方便。 2.內置過壓、過流和短路保護。 3.寬范圍輸入: 100-240V,50/60Hz 4.額定輸出電壓,電流: DC2.4V-30V; 50-2000mA;12W max. 5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭） 6.工作模式:恒壓或恒流。 7.符合能效:ErP,EMPS,CEC,DOE。 8.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA 9.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE. 10. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	2000mA max.at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 2.4-30V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	2300mA max @2.4-30V,14.4W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	14.5W max @ DC 2.4-30V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

EN 60335-2-29 Standard requirements:
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Dieses Gerät kann von Kindern ab 8 Jahren verwendet werden. Es kann ebenfalls von Personen mit verminderten körperlichen, sensorischen und geistigen Fähigkeiten oder mangelnder Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt werden oder im sicheren Umgang des Gerätes unterwiesen wurden und eine mögliche Gefährdung bei falscher Benutzung des Gerätes verstehen.

15W Series



1.小體積,流線型,全密封,攜帶方便。 2.內置過壓、過流和短路保護。 3.寬范圍輸入: 100-240V,50/60Hz 4.額定輸出電壓,電流: DC2.4V-36V; 50-2300mA;15W max. 5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭） 4.工作模式:恒壓或恒流。 5.符合能效:ErP,EMPS,CEC,DOE。 6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA 7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE. 8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	2300mA max.at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 2.4-36V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	2300mA max @2.4-36V,15W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	15W max @ DC 2.4-36V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

18W Series

1.小體積,流線型,全密封,攜帶方便。
2.內置過壓、過流和短路保護。
3.寬范圍輸入: 100-240V,50/60Hz
4.額定輸出電壓,電流: DC3V-30V; 50-2300mA;18W max.
5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭）
4.工作模式:恒壓或恒流。
5.符合能效:ErP,EMPS,CEC,DOE。
6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA
7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域
可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	3000mA max. at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 3-30V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	3000mA max @3-30V,18W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	18W max @ DC 3-30V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

28W Series



1.小體積,流線型,全密封,攜帶方便。 2.內置過壓、過流和短路保護。 3.寬范圍輸入: 100-240V,50/60Hz 4.額定輸出電壓,電流: DC3V-36V; 50-4000mA;28W max. 5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭） 4.工作模式:恒壓或恒流。 5.符合能效:ErP,EMPS,CEC,DOE。 6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA 7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE. 8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	4000mA max. at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 3-36V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	4000mA max @3-30V,28W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	28W max @ DC 3-36V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

36W Series

1.小體積,流線型,全密封,攜帶方便。
2.內置過壓、過流和短路保護。
3.寬范圍輸入: 100-240V,50/60Hz
4.額定輸出電壓,電流: DC5V-36V; 50-5000mA;36W max.
5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭）
4.工作模式:恒壓或恒流。
5.符合能效:ErP,EMPS,CEC,DOE。
6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA
7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域
可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	4000mA max. at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 3-36V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	4000mA max @3-30V,28W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	28W max @ DC 3-36V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

65W Series

1.小體積,流線型,全密封,攜帶方便。
2.內置過壓、過流和短路保護。
3.寬范圍輸入: 100-240V,50/60Hz
4.額定輸出電壓,電流: DC3V-36V; 50-6000mA;65W max.
5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭）
4.工作模式:恒壓或恒流。
5.符合能效:ErP,EMPS,CEC,DOE。
6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA
7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域
可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	6000mA max. at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 3-36V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	6000mA max @3-30V,65W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	65W max @ DC 3-36V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

90W Series

1.小體積,流線型,全密封,攜帶方便。
2.內置過壓、過流和短路保護。
3.寬范圍輸入: 100-240V,50/60Hz
4.額定輸出電壓,電流: DC12V-36V; 50-8000mA;90W max.
5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭）
4.工作模式:恒壓或恒流。
5.符合能效:ErP,EMPS,CEC,DOE。
6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA
7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域
可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	8000mA max. at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 12-36V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	8000mA max @3-30V,65W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	90W max @ DC 12-36V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	N/A
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

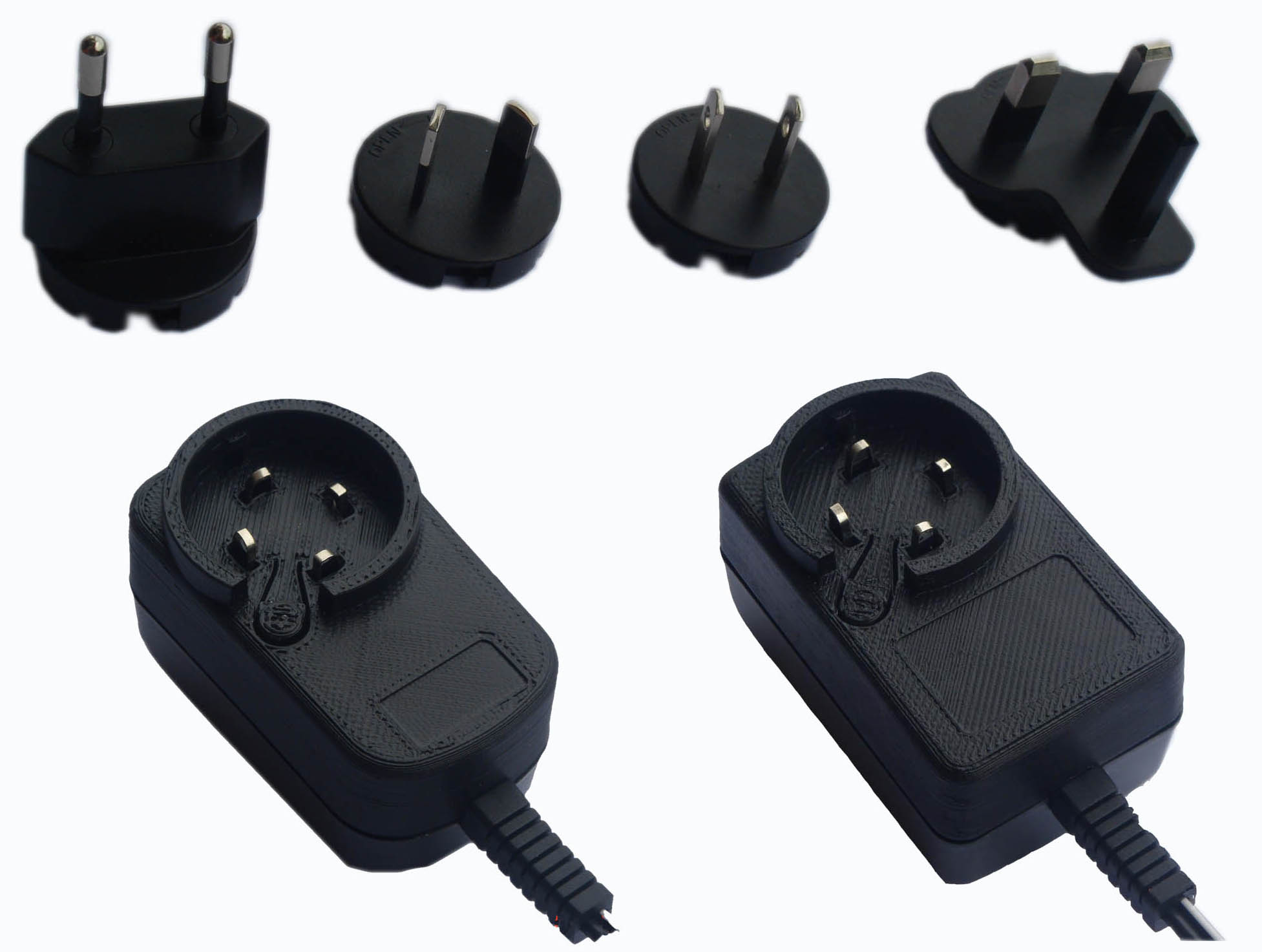

Changable AC plug Series

1.小體積,流線型,全密封,攜帶方便。
2.內置過壓、過流和短路保護。
3.寬范圍輸入: 100-240V,50/60Hz
4.額定輸出電壓,電流: DC2.4V-30V; 50-1500mA; 15W max.
5. 接口輸出：帶線或帶USB接口（可根據客戶需求訂做DC頭）
4.工作模式:恒壓或恒流。
5.符合能效:ErP,EMPS,CEC,DOE。
6.插腳類型:US/JAPAN,EUROPE,UK/HK,AUSTRALIA
7.安規標準:IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
8. 適用于: 數碼產品，音響設備，通信產品,電動玩具等領域
可按客戶要求訂做各種規格型號適配器

Input	Rated Input Voltage	100Vac TO 240Vac	Rated Input Frequency	50/60Hz
	Input Voltage Range	90Vac TO 264Vac
	Input Current	1500mA max.at 100-240Vac Input
	Efficiency	ErP Directive (2009/125/CE); Australia Minimum Energy Performance Standards (MEPS) AS/NZS4665-2005; California Appliance efficiency Regulation(CEC)CEC-400-2009-013; Energy Star;
	Voltage(VO)	DC 2.4-24V
	Output Regulation	±5%@constant Voltage Mode
Output	Ourrent Regulation	±5%@constant Current Mode
	Current limit	1500mA max @2.4-30V,15W max
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap.
	Maxinum Power(PO)	15W max @ DC 2.4-30V
	Hold-up Time	10ms Typical At Full Load@ 115v
	Protection	Over-current Protection; short-circuit Protection; Over-voltage Protection
	DC Cable	Length of output DC cable 50--180cm
	USB	USB socket
EMC	EMI	FCC CLASS B;CISRP22 CLASS B;EN55022,;EN55014.
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	IEC/EN 60950,IEC/EN 61558,IEC/EN 60335,FCC, UL-60950,AS/ NZS 61558,PSE.
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Storage Temperature	-10℃ to 70℃

首頁關于利高產品中心安規認證企業相冊 資訊中心聯系我們

東莞市利高電源制品有限公司版權所有 Copyright lygoelec.com E-mail：sales@lygo.com.hk Tel：+86-0769-83731126

東莞市利高電源制品有限公司版權所有 Copyright
sales@lygo.com.hk 0769-83731126
